gate_valve_001
E-FLOW
gate_valve_001gate_valve_002gate_valve_004gate_valve_003gate_valve_005gate_valve_006
 The products have the following design features: Ease of Service and Maintenance Backseat bushing allows replacement of packing while disc plunger is in fully open position during operation. Completely Tight Shut-Off Flexible wedge disc design provides an effective tight seal. Fire S ...Read more

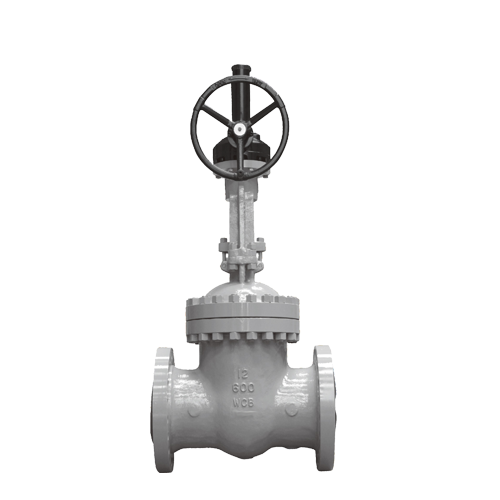

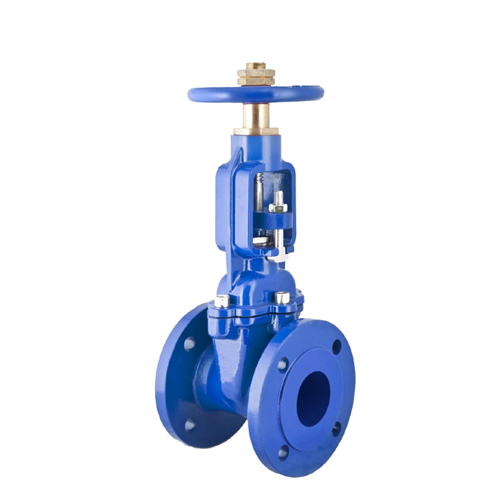

Gate Valve



Brand

: E-FLOW

Size Range

: 1/2” ~ 24” (other size available upon request)

Pressure Rating

: ASME Class 150 ~ 2500 / EN 1092 PN10 ~ PN16

Design Standard

: API 600 / API602 / BS 5163

Face to Face Standard

: ASME B16.10 / EN 558 Series 3

Connection Standard

: Flanged end to ASME B16.5 or DIN EN1092 ,
  Threaded end (NPT) to ASME B1.20.1 ,
  Butt weld end to ASME B16.25 ,
  Socket weld end to ASME B16.11 .

Material

: Carbon Steel , Stainless Steel , Duplex or Super Duplex
  Stainless Steel , Nickel Aluminium Bronze , Cast Iron ,
  Ductile Iron

Operation

: Handwheel , Gear

Type

: Resilient or Metal Seated ,
  OS&Y , Rising Stem or Non-Rising Stem ,
  Bolted Bonnet , Screwed Bonnet , Pressure Seal




  • Description

 The products have the following design features:

  • Ease of Service and Maintenance

Backseat bushing allows replacement of packing while disc plunger is in fully open position during operation.

  • Completely Tight Shut-Off

Flexible wedge disc design provides an effective tight seal.

  • Fire Safe

Fire safe by design. Meet requirement of firesafe API 607.

  • Fugitive Emission

Meet International standards for fugitive emissions including API 622 and ISO 15848-1.

  • NACE MR-01-75 Compliance

All materials can be supplied to NACE MR-01-75 compliance. Compliance is ensured during the manufacturing process by strict inspection and material control.
