Products

Product Range

globe_valve_001_1549742611
E-FLOW
globe_valve_001_1549742611globe_valve_002_1799771752globe_valve_005_1024946026globe_valve_004_1807283630globe_valve_006globe_valve_007
The products have the following design features: Ease of Service and Maintenance Backseat bushing allows replacement of packing while disc plunger is in fully open position during operation. Completely Tight Shut-Off Conical Disc design ensures that the disc is always in contact with the ...Read more

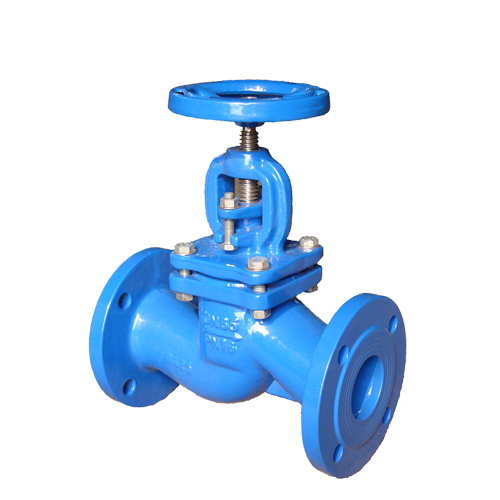

Globe Valve



Brand

: E-FLOW

Size Range

: 1/2" ~ 18”

Pressure Rating

: ASME Class 150LB~2500LB , PN10~PN16

Design Standard

: API 600 , API602 , BS 1873

Connection Standard

: Flanged end to ASME B16.5 or DIN EN1092  ,
  Threaded end (NPT) to ASME B1.20.1 ,
  Butt weld end to ASME B16.25 ,
  Socket weld end to ASME B16.11 .

Material

: Carbon Steel , Stainless Steel , Duplex or Super Duplex
  Stainless Steel , Nickel Aluminium Bronze , Cast Iron ,
  Ductile Iron .

Operation

: Handwheel , Gear

Type

: OS&Y , Rising Stem or Non-Rising Stem ,
  Bolted Bonnet , Pressure Seal , Metal Seated .




  • Description

The products have the following design features:

  • Ease of Service and Maintenance

Backseat bushing allows replacement of packing while disc plunger is in fully open position during operation.

  • Completely Tight Shut-Off

Conical Disc design ensures that the disc is always in contact with the seat to provide an effective tight seal.

  • Solid Disc Design

Solid disc plunger design ensures that you take control of your flow.

  • Stem Seal System

E-FLOW globe valves are designed with a multi-independent stem seal system with adjusting packing to provide an economical solution and control. Extended bonnet stem allows for Cryogenic services.

  • NACE MR-01-75 Compliance

All materials can be supplied to NACE MR-01-75 compliance. Compliance is ensured during the manufacturing process by strict inspection and material control.

  • High Flow Capacity

High lift disc plunger design allows for high flow rate in liquid and gas regardless the quality of the media.
