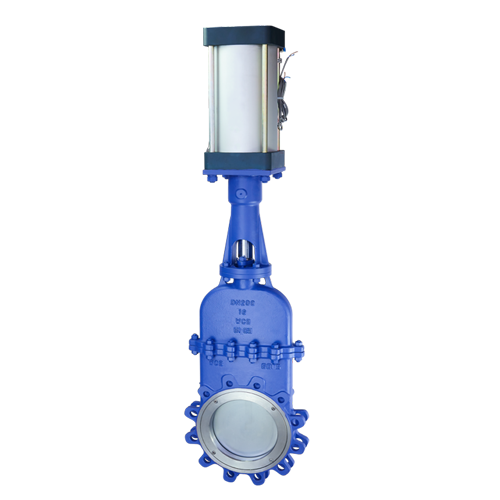

Knife Gate Valve



Brand

: E-FLOW

Size Range

: 2” ~ 24” (larger size upon request)

Pressure Rating

: ASME Class 150LB , PN10 ~ PN16

Design Standard

: MSS-SP-81 , AWWA C520-14

Face to Face Standard

: MSS-SP-81 , Manufacturer Standard

Connection Standard

: Flanged end to ASME B16.5 or DIN EN1092

Material

: Carbon Steel , Stainless Steel , Cast Iron , Ductile Iron

Body Style

: Wafer , Lug , Double Flanged

Operation

: Handwheel , Gear , Pneumatic Actuator ,
  Electric Actuator

Type

: Resilient Seated , Metal Seated , Bolted Bonnet ,
  Bonnetless , Bi-directional , Uni-directional




  • Description

Services

The knife gate valves are linear shut off valves that are light weight with compact construction. Valves are available as manual with handwheel or can be automated with pneumatic cylinder actuator for remote operation. The arc shape of the gate of our knife gate valve is designed to be particularly suitable for cutting off fluid containing fiber or suspended particles, so the knife gate valves are ideal for many applications in the process industries of Pulp & Paper, Wastewater Treatment, Mining, Sugar Making and Chemical Processing.
