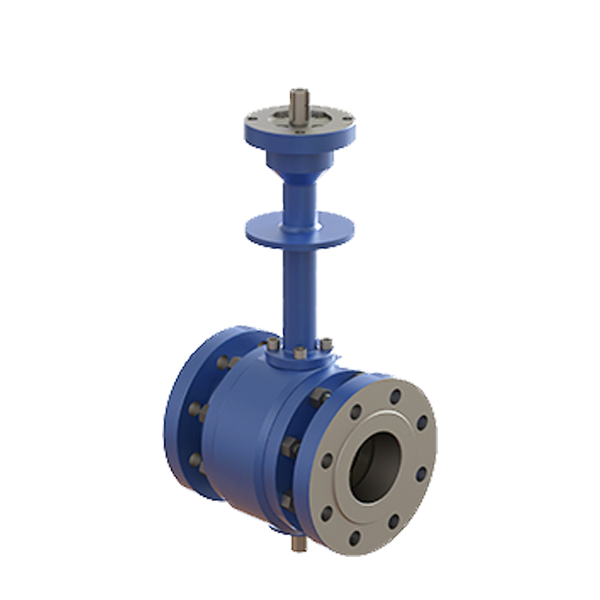

Cryogenic Ball Valve



Brand

: VIZA

Size Range

: 1/2” ~ 24”

Pressure Rating

: ASME Class 150 ~ 600

Temperature

: -196°C to ambient temperature

Design Standard

: ASME B16.34 , API 6D , ISO 17292 , BS 6364

Face to Face Standard

: ASME B16.10

Connection Standard

: Flange end to ASME B16.5 ,
  Butt weld end to ASME B16.25

Testing Standard

: BS EN 12266 , SHELL MESC 77/200 , SHELL MESC 77/306

Material

: Stainless Steel

Operation

: Lever , Gear , Pneumatic Actuator , Electric Actuator

Type

: Floating Ball , Trunnion Mounted




  • Description

VIZA Valves is one of the China’s leading manufacturers of industrial valves, recognized as a preferred supplier in quality and innovation. Suzhou Viza Valve Co., Ltd is the major subsidiary company and as the headquarter of VIZA group which has been manufacturing trouble-free service valves for more than 10 years. Today, VIZA’s gate, globe, check, ball, butterfly and engineered severe service valves are installed throughout the world, handling diverse applications in oil & gas, petrochemicals, refining, power plants, LNG, pipeline transmission, marine, mining and water industries.



Cryogenic Service

Cryogenic valves are demanded widely for application between -196°C and -50°C, including LNG that is fast becoming a better alternative source of clean energy. VIZA develops its cryogenic Floating (Series FY) and Trunnion mounted (Series TY) ball valve accordingly.



Cryogenic Test

Valves can be tested by in-house testing facility and the report can be provided upon request.



The products have the following design features:

  • Blow-out Proof Stem
  • Anti-static Device
  • Cavity Pressure Relief
  • Low operating torque for smoother operations
  • Fire safe design to API607 / API6FA
  • Low Fugitive Emission Compliance
  • ISO 5211 Top Mounting Connection
  • Lockable Design
  • Extended Bonnet Design
