VIZA Valves is one of the China’s leading manufacturers of industrial valves, recognized as a preferred supplier in quality and innovation. Suzhou Viza Valve Co., Ltd is the major subsidiary company and as the headquarter of VIZA group which has been manufacturing trouble-free service valves for mor ...Read more

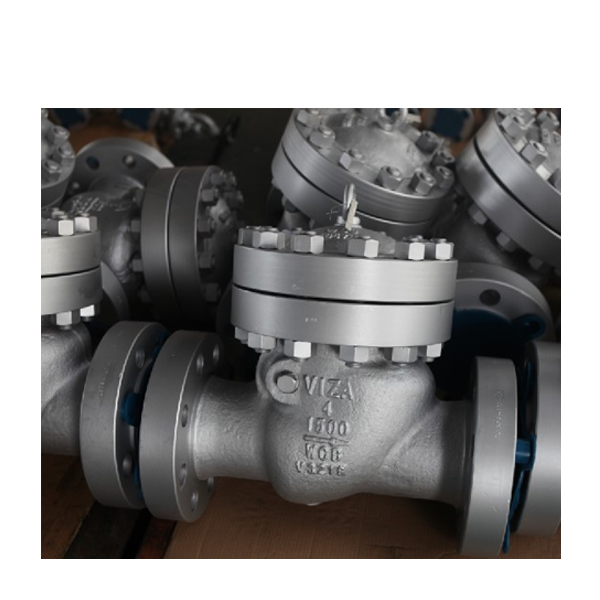

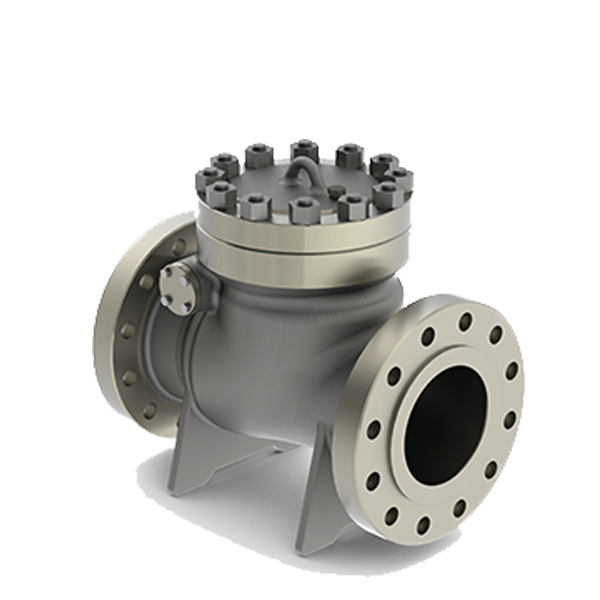

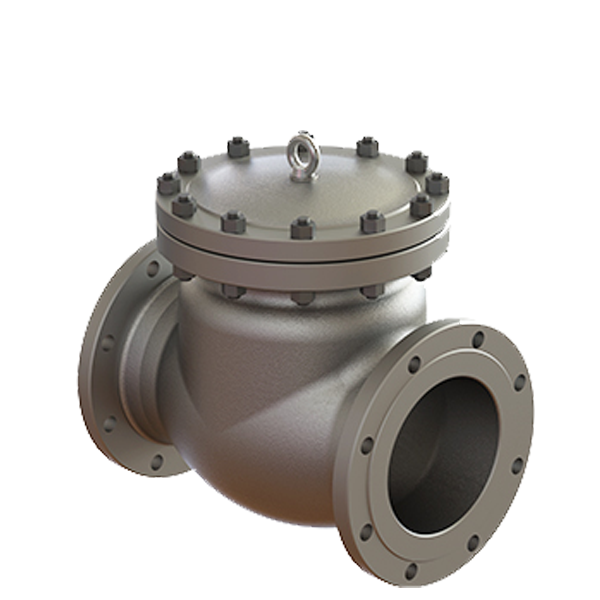

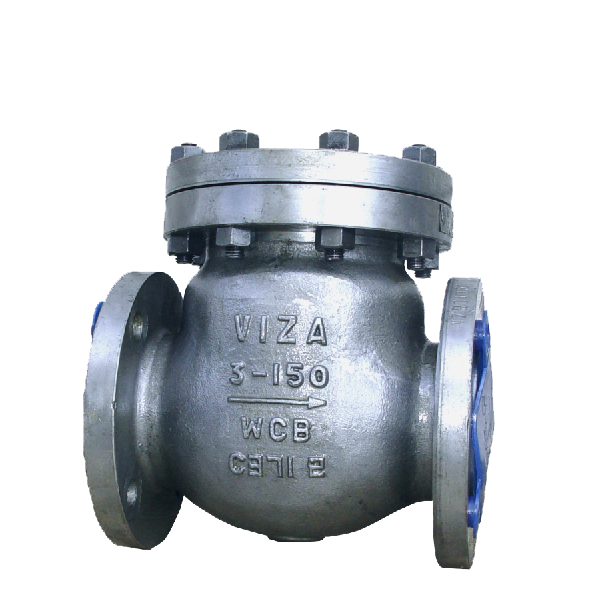

Cast Steel Swing Check Valve



Brand

: VIZA

Size Range

:  2” ~ 24”

Pressure Rating

: ASME Class 150 ~ 2500

Design Standard

: ASME B16.34 , BS1868

Face to Face Standard

: ASME B16.10

Connection Standard

: Flanged end to ASME B16.5 ,
  Butt weld end to ASME B16.25 ,
  Socket weld end to ASME B16.11 .

Material

: Carbon Steel , Alloy Steel , Stainless Steel , Duplex or Super Duplex Stainless Steel

Type

: Cast Steel Swing Check Valve
  Cast Steel Pressure Seal Swing Check Valve



  • Description

VIZA Valves is one of the China’s leading manufacturers of industrial valves, recognized as a preferred supplier in quality and innovation. Suzhou Viza Valve Co., Ltd is the major subsidiary company and as the headquarter of VIZA group which has been manufacturing trouble-free service valves for more than 10 years. Today, VIZA’s gate, globe, check, ball, butterfly and engineered severe service valves are installed throughout the world, handling diverse applications in oil & gas, petrochemicals, refining, power plants, LNG, pipeline transmission, marine, mining and water industries.

The products have the following design features:

  • Bolted Cover
  • Swing Type Disc
  • Full Port
  • Internal or External Hinge Pin Design
  • 6” & above with Eye Bolt
  • NACE MR-0175 Compliance



Optional Features:

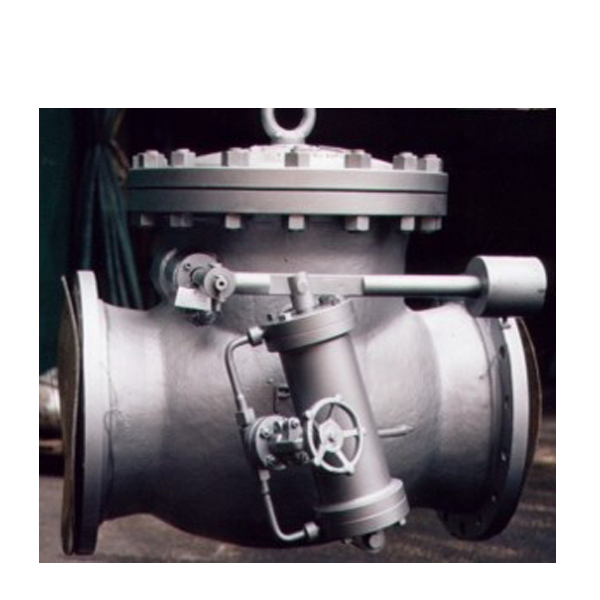

  • Damping Device Available
  • By-pass System
  • Full Opening Piggable
  • Pressure Seal Available for Class 600LB & above
