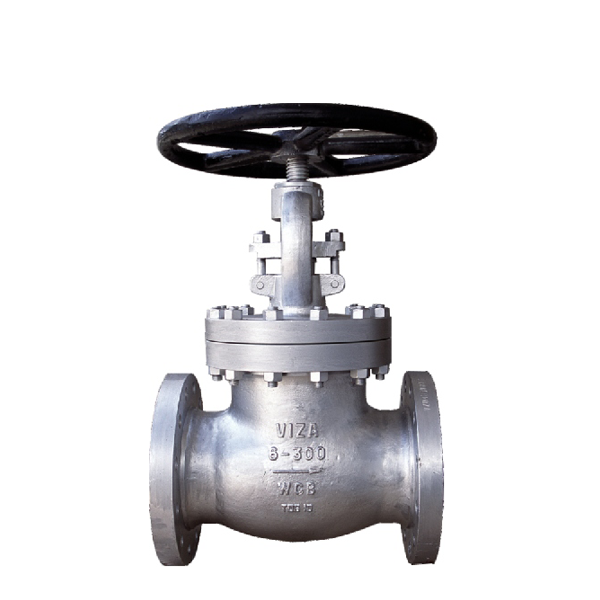

Cast Steel Globe Valve



Brand

: VIZA

Size Range

: 2” ~ 18”

Pressure Rating

: ASME Class 150 ~ 2500

Design Standard

: ASME B16.34 , BS1873

Face to Face Standard

: ASME B16.10

Connection Standard

Flanged end to ASME B16.5 ,
  Butt weld end to ASME B16.25 ,
  Socket weld end to ASME B16.11 .

Material

: Carbon Steel , Alloy Steel , Stainless Steel ,  Duplex or Super Duplex Stainless Steel

Operation

: Handwheel , Gear , Motor Actuator

Type

: Cast Steel Globe Valve
  Cast Steel Pressure Seal Globe Valve




  • Description

VIZA Valves is one of the China’s leading manufacturers of industrial valves, recognized as a preferred supplier in quality and innovation. Suzhou Viza Valve Co., Ltd is the major subsidiary company and as the headquarter of VIZA group which has been manufacturing trouble-free service valves for more than 10 years. Today, VIZA’s gate, globe, check, ball, butterfly and engineered severe service valves are installed throughout the world, handling diverse applications in oil & gas, petrochemicals, refining, power plants, LNG, pipeline transmission, marine, mining and water industries.





The globe valves have the following design features:

  • OS&Y, Rising Stem
  • Bolted Bonnet
  • Conic Disc
  • Swing Bolted Packing
  • Impact Handwheel standard for 6” & above
  • NACE MR-1075 Compliance



Optional Features:

  • Extended Bonnet Design Available
  • Locking Device
  • Chain Wheel Operation
  • Bellow Seal Design Available
  • Low Emission Design
  • Double Packing Design
  • Extended Stem
  • ISO 5210 Top Mounting Pad
  • Pressure Seal Available for Class 600LB & above
